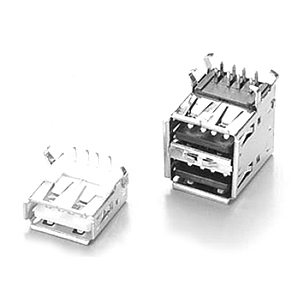

• 2001 SERIES USB A TYPE P.C.B. FEMALE TYPE

    2001 SERIES USB A TYPE P.C.B. FEMALE TYPE

    MATERIAL:
    HOUSING : PBT + GF, UL 94V-0 RATED.
    CONTACT : COPPER ALLOY.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     5 AMPS.
    VOLTAGE : 30V AC. (R.M.S.)
    CONTACT RESISTANCE : 30 MILLIOHMS MAXIMUM INITIAL.
    INSULATION RESISTANCE : 1000 MEGOHMS MINIMUM.
    OPERATING TEMPERATURE: -55°C ~ +85°C

    More Specification (PDF)

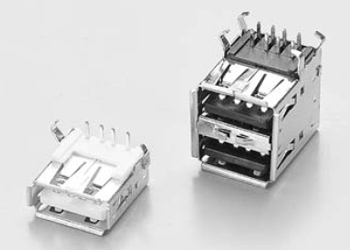

2001 SERIES USB A TYPE P.C.B. FEMALE TYPE

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 2001
ROW OPTION
CONTACT TYPE
PLATING SELECTIVE GOLD PLATED
SHELL
PANEL
HOUSING COLOR
