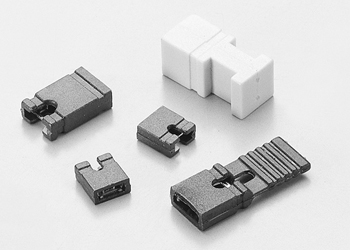

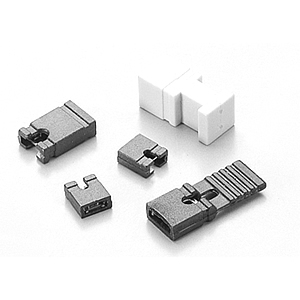

    7001 SERIES 2.54 / 2.00MM MINI JUMPER

    MATERIAL:
    INSULATOR :     PBT + 30% GLASS FIBER, UL 94V-0 RATED.
    CONTACT : PHOSPHOR BRONZE OR BRASS.
                      (STANDARD IS BRASS)

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     3.0 AMPS.
    WITHSTANDING VOLTAGE : 650V AC MIN.
    INSULATOR RESISTANCE : 1000 MEGOHMS MIN.
    CONTACT RESISTANCE : 30 MILLIOHMS MAX.
    OPERATING TEMPERATURE : -55°C ~ +105°C

    More Specification (PDF)

7001 SERIES 2.54 / 2.00MM MINI JUMPER

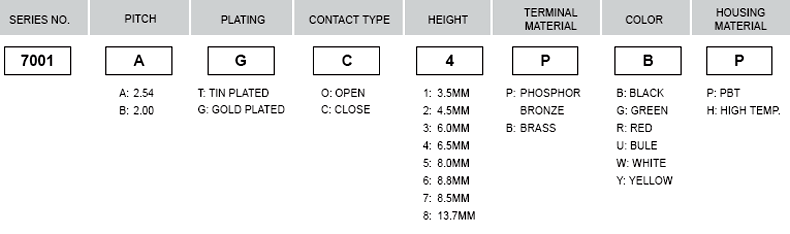

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 7001
PITCH
PLATING
CONTACT TYPE
HEIGHT
TERMINAL MATERIAL
COLOR
HOUSING MATERIAL
