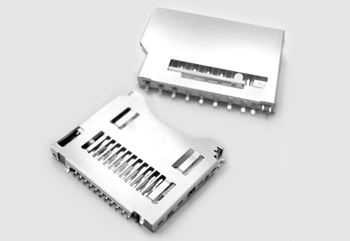

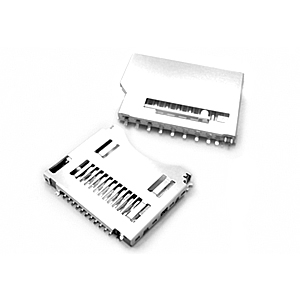

8006 SERIES MINI SD CARD MANUAL / PUSH PUSH TYPE
MATERIAL:
HOUSING : THERMOPLASTIC (UL 94V-0).
CONTACT : PHOSPHOR BRONZE.
SPECIFICATION:
VOLTAGE RATING : 50V DC MAX.
CURRENT RATING : 0.5A MAX.
OPERATING TEMPERATURE : -20°C ~ +80°C
INSULATION RESISTANCE : 1000 MΩ MIN.
CONTACT RESISTANCE : 100 MΩ MAX.
