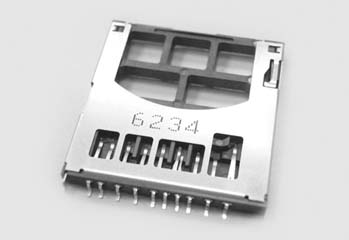

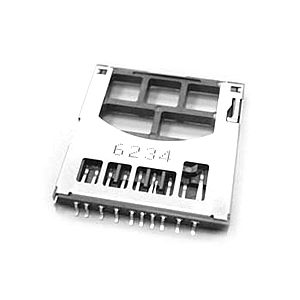

• 8005 SERIES SD PUSH PUSH REVERSE TYPE

    8005 SERIES SD PUSH PUSH REVERSE TYPE

    MATERIAL:
    HOUSING : LCP+30% GF., UL 94V-0 RATED.
    CONTACT : PHOSPHOR BRONZE.

    SPECIFICATION:
    VOLTAGE RATING :     50V DC MAX.
    CURRENT RATING : 0.5A MAX.
    OPERATING TEMPERATURE : -20°C ~ +80°C
    INSULATION RESISTANCE : 1000 MΩ MIN.
    CONTACT RESISTANCE : 100 MΩ MAX.

    More Specification(PDF)

8005 SERIES SD PUSH PUSH REVERSE TYPE

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 8005
TYPE REVERSE TYPE
PLATING
See Catalog
