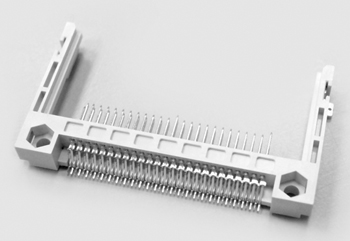

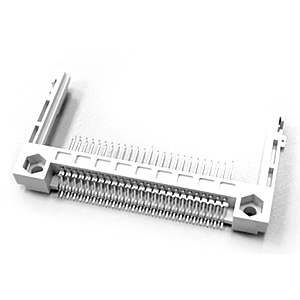

• 8002 SERIES CF CARD TYPE II PROFILE 5.8MM / 6.7MM

    8002 SERIES CF CARD TYPE II PROFILE 5.8MM / 6.7MM

    MATERIAL:
    HOUSING :     THERMOPLASTIC (UL 94V-0).
    CONTACT : PHOSPHOR BRONZE.

    SPECIFICATION:
    VOLTAGE RATING : 50V DC MAX.
    CURRENT RATING : 0.5A MAX.
    OPERATING TEMPERATURE : -20°C ~ +80°C
    INSULATION RESISTANCE : 1000 MΩ MIN.
    CONTACT RESISTANCE : 100 MΩ MAX.

    More Specification(PDF)

8002 SERIES CF CARD TYPE II PROFILE 5.8MM / 6.7MM

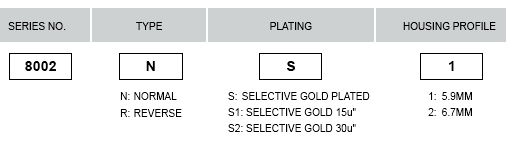

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 8002
TYPE
PLATING
HOUSING PROFILE
