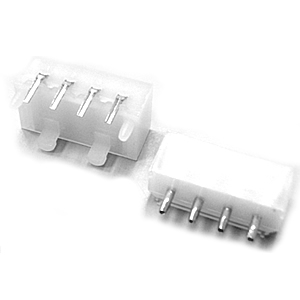

    3001 SERIES 5.08MM WIRE TO BOARD POWER CONNECTOR

    MATERIAL:
    INSULATOR : NYLON 66 UL 94V-0.
    CONTACT MATERIAL : BRASS.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     2AMPS.
    WITHSTANDING VOLTAGE : 750V AC MIN.
    CONTACT RESISTANCE : 30 MILLIOHMS MAX.
    INSULATION RESISTANCE : 1000 MEGOHMS MIN.
    OPERATING TEMPERATURE : -25°C ~ +85°C

    More Specification(PDF)

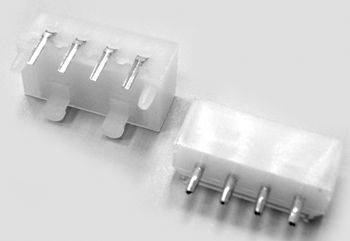

3001 SERIES 5.08MM WIRE TO BOARD POWER CONNECTOR

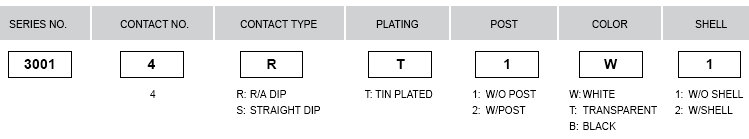

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 3001
CONTACT NO. 4
CONTACT TYPE
PLATING TIN PLATED
POST
COLOR
SHELL
