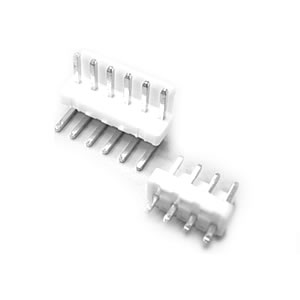

    3004A SERIES 3.96MM PITCH WIRE TO BOARD

    MATERIAL:
    INSULATOR : NYLON 66.
                          UL 94V-0.
    CONTACT : PHOSPHOR BRONZE.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING : 5 AMPS.
    WITHSTANDING VOLTAGE : 750V AC MIN.
    CONTACT RESIETANCE : 30 MILLIOHMS MAX.
    INSULATION RESISTANCE : 1000 MEGOHMS MIN.
    OPERATING TEMPERATURE : -25°C ~ +85°C

    More Specification(PDF)

3004A SERIES 3.96MM PITCH WIRE TO BOARD

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 3004A
CONTACT NO.
PLATING TIN PLATED
