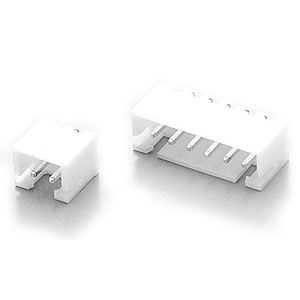

• 3003A SERIES 3.96MM PITCH WIRE TO BOARD

    3003A SERIES 3.96MM PITCH WIRE TO BOARD

    MATERIAL:
    INSULATOR : NYLON 66 UL 94V-0.
    CONTACT : PHOSPHOR BRONZE.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING : 2 AMPS.
    WITHSTANDING VOLTAGE : 750V AC MIN.
    INSULATOR RESISTANCE : 1000 MEGOHMS MIN. AT 500V DC.
    CONTACT RESISTANCE : 30 MILLIOHMS MAX.
    OPERATING TEMPERATURE : -25°C ~ +85°C

    More Specification(PDF)

3003A SERIES 3.96MM PITCH WIRE TO BOARD

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 3003A
CONTACT NO.
PLATING TIN PLATED
See Catalog
