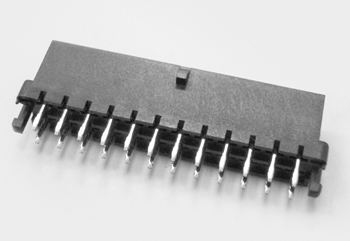

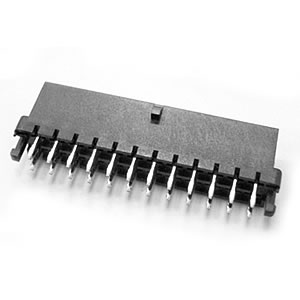

• 3005 (SINGLE ROW) SERIES 3.0MM MINI FIT POWER CONNECTOR

    3005 (SINGLE ROW) SERIES 3.0MM MINI FIT POWER CONNECTOR

    MATERIALS :
    HOUSING :     PBT30 % GF (UL 94V-0), BLACK.
    TERMINAL : BRASS.

    SPECIFICATION
    CURRENT RATING : 5 AMP. MAX.
    WITHSTAND VOLTAGE : 1500V AC R.M.S. FOR 1 MINTUE.
    INSULATION RESISTANCE : 1000M OHMS MIN.
    WITHSTANDING VOLTAGE : 1500V AC / MINTUE.
    OPERATING TEMPERATURE : -25°C TO +85°C.

    More Specification(PDF)

3005 (SINGLE ROW) SERIES 3.0MM MINI FIT POWER CONNECTOR

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 3005S
CONTACT NO.
MOUNTING TYPE
PLATING TIN PLATED
POST
COLOR BLACK
