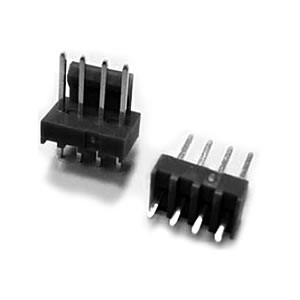

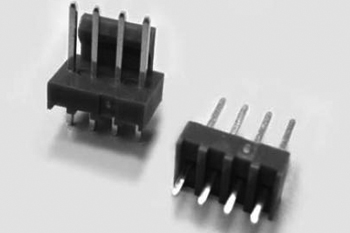

• 3008A SERIES 2.54MM PITCH MOLEX WIRE TO BOARD

    3008A SERIES 2.54MM PITCH MOLEX WIRE TO BOARD

    MATERIAL:
    INSULATOR : NYLON-66.
    CONTACT : BRASS.

    ELECTRICAL CHARICTERIATIC:
    CURRENT RATING : 3A AC / DC.
    VOLTAGE RATING : 250V AC / DC.
    INSULATION RESISTANCE : 1000 MEGOHMS MIN.
    WITHSTANDING VOLTAGE : 800V AC / MINUTE.
    OPERATING TEMPERATURE : -25°C TO 85°C

    More Specification(PDF)

3008A SERIES 2.54MM PITCH MOLEX WIRE TO BOARD

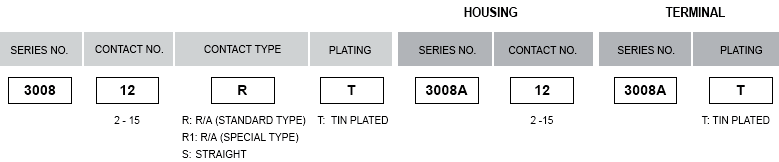

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 3008A
CONTACT NO.
PLATING TIN PLATED
See Catalog
