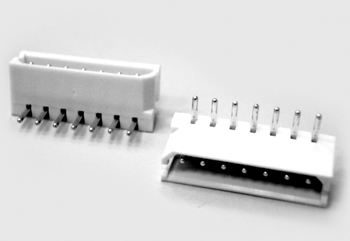

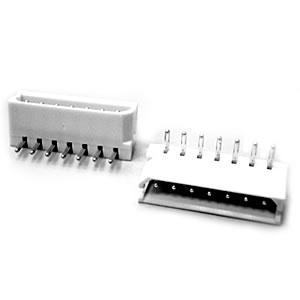

3011 SERIES 2.50MM PITCH MOLEX WIRE TO BOARD
MATERIAL:
INSULATOR : NYLON 66 UL 94V-0.
CONTACT : PHOSPHOR BRONZE OR BRASS.
(STANDARD IS BRASS)
ELECTRICAL CHARACTERISTICS:
CURRENT RATING : 3 AMPS.
WITHSTANDING VOLTAGE : AC 1250V R.M.S.
INSULATOR RESISTANCE : 5000 MEGOHMS MIN. AT 500V DC.
CONTACT RESISTANCE : 15 MILLIOHMS MAX.
OPERATING TEMPERATURE : -55°C ~ +105°C
