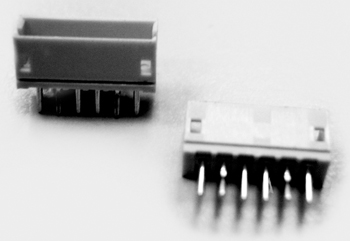

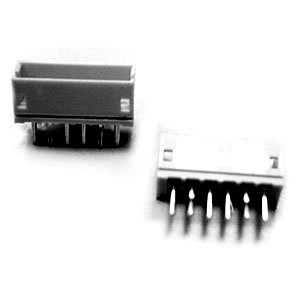

• 3015 SERIES 1.50MM PITCH JST ZH WIRE TO BOARD

    3015 SERIES 1.50MM PITCH JST ZH WIRE TO BOARD

    MATERIAL:
    INSULATOR : NYLON 66 UL94-V0.
    CONTACT : PHOSPHOR BRONZE OR BRASS.
                       (STANDARD IS BRASS)

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING : 1 AMP.
    WITHSTANDING VOLTAGE : AC 1250V R.M.S.
    INSULATOR RESISTANCE : 5000 MEGOHMS MIN. AT 500V DC.
    CONTACT RESISTANCE : 15 MILLIOHMS MAX.
    OPERATING TEMPERATURE : -55°C ~ +105°C

    More Specification(PDF)

3015 SERIES 1.50MM PITCH JST ZH WIRE TO BOARD

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 3015
CONTACT NO.
CONTACT TYPE
PLATING TIN PLATED
