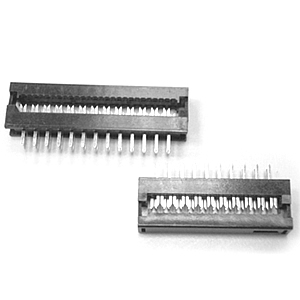

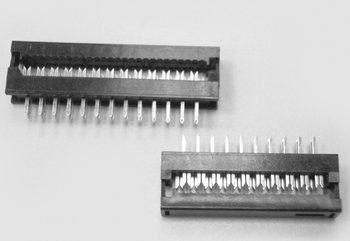

    5012 SERIES 2.54 / 2.00 / 1.27MM PITCH IDC PLUG

    MATERIAL:
    INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
    CONTACT : BRASS.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     3 AMPS.
    WITHSTANDING VOLTAGE : AC 500V R.M.S.
    INSULATOR RESISTANCE : 5000 MEGOHMS MIN.
    CONTACT RESISTANCE : 20 MILLIOHMS MAXIMUM.
    OPERATING TEMPERATURE : -40°C ~ +105°C

    More Specification (PDF)

5012 SERIES 2.54 / 2.00 / 1.27MM PITCH IDC PLUG

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 5012
PITCH
CONTACT NO.
PLATING
HOUSING PROFILE
COLOR
