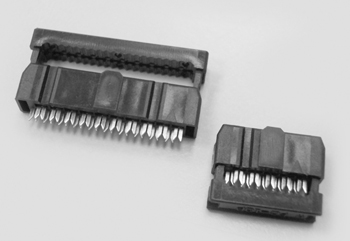

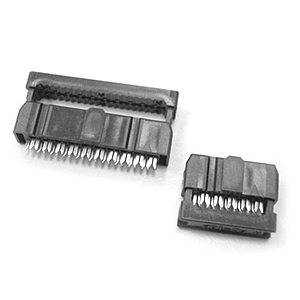

5011 SERIES 2.54 / 2.00 / 1.27MM PITCH IDC SOCKET

MATERIAL:
INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
CONTACT : BRASS.

ELECTRICAL CHARACTERISTICS:
CURRENT RATING : 3 AMPS.
WITHSTANDING VOLTAGE : AC 500V R.M.S.
INSULATOR RESISTANCE : 5000 MEGOHMS MIN.
CONTACT RESISTANCE : 20 MILLIOHMS MAXIMUM.
OPERATING TEMPERATURE : -40°C ~ +105°C

More Specification (PDF)

5011 SERIES 2.54 / 2.00 / 1.27MM PITCH IDC SOCKET

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

SERIES NO.	5011
PITCH
CONTACT NO.
PLATING
STRAIN RELIEF
HOUSING MATERIAL
COLOR
CENTER BUMP
