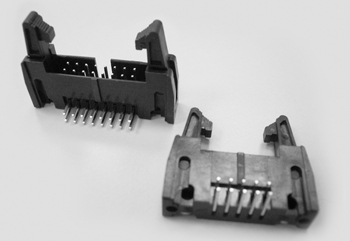

    5010 SERIES 2.54 / 2.00 / 1.27MM PITCH LATCH HEADER

    MATERIAL:
    INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
    CONTACT : BRASS.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     3 AMPS.
    WITHSTANDING VOLTAGE : AC 1000V R.M.S.
    INSULATOR RESISTANCE : 5000 MEGOHMS MIN. AT 1000V DC.
    OPERATING TEMPERATURE : -55°C ~ +105°C

    More Specification (PDF)

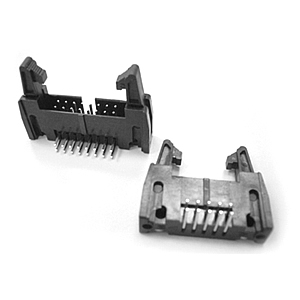

5010 SERIES 2.54 / 2.00 / 1.27MM PITCH LATCH HEADER

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 5010
PITCH
CONTACT NO.
CONTACT TYPE
PLATING
HOUSING MATERIAL
COLOR
EJECTOR
