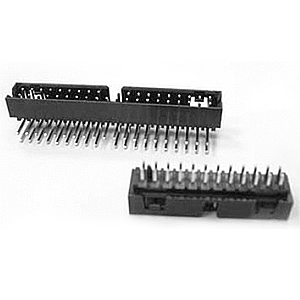

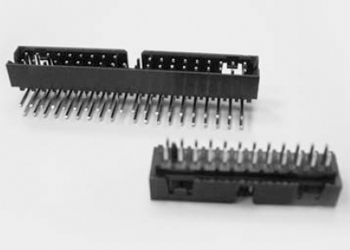

• 5009 SERIES 2.54 / 2.00 PITCH BOX HEADER MOLEX TYPE

    5009 SERIES 2.54 / 2.00 PITCH BOX HEADER MOLEX TYPE

    MATERIAL:
    INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
    CONTACT : BRASS.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING : 1 AMP.
    WITHSTANDING VOLTAGE : AC 5000V R.M.S.
    INSULATOR RESISTANCE : 1000 MEGOHMS MIN. AT 500V DC.
    CONTACT RESISTANCE : 15 MILLIOHMS MAXIMUM.
    OPERATING TEMPERATURE : -40°C ~ +105°C

    More Specification(PDF)

5009 SERIES 2.54 / 2.00 PITCH BOX HEADER MOLEX TYPE

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 5009
PITCH
CONTACT NO.
CONTACT TYPE
PLATING
HOUSING MATERIAL
COLOR
