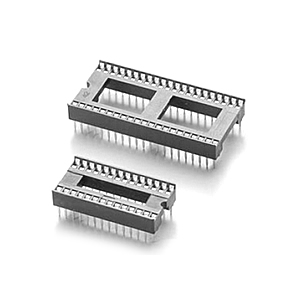

• 4004 SERIES 1.778MM PITCH IC SOCKET

    4004 SERIES 1.778MM PITCH IC SOCKET

    MATERIAL:
    INSULATOR : PBT + 30% GLASS FIBER,
                          UL 94V-0 RATED.
    CONTACT : PHOSPHOR BRONZE.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     1 AMP.
    WITHSTANDING VOLTAGE : AC 750V R.M.S.
    INSULATOR RESISTANCE : 5000 MEGOHMS MIN.
    CONTACT RESISTANCE : 20 MILLIOHMS MAX.
    OPERATING TEMPERATURE : -55°C ~ +105°C

    More Specification (PDF)

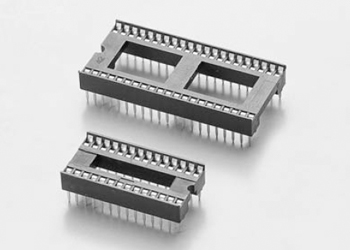

4004 SERIES 1.778MM PITCH IC SOCKET

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 4004
ROW SPACING
CONTACT NO.
PLATING TIN PLATED
TYPE
