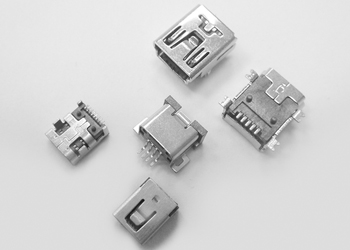

• 2004 SERIES MINI USB P.C.B TYPE 4P / 5P / 8P

    2004 SERIES MINI USB P.C.B TYPE 4P / 5P / 8P

    MATERIAL:
    SHELL : BRASS, TIN PLATED.
    HOUSING : THERMOPLASTIC.
    CONTACT : PHOSPHOR BRONZE, SELECTIVE GOLD OVER NICKEL.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     5 AMPS.
    VOLTAGE : 30V AC. (R.M.S.)
    CONTACT RESISTANCE : 30 MILLIOHMS MAXIMUM INITIAL.
    INSULATION RESISTANCE : 1000 MEGOHMS MINIMUM.
    OPERATING TEMPERATURE : -55°C ~ +85°C

    More Specification (PDF)

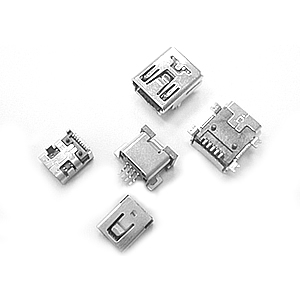

2004 SERIES MINI USB P.C.B TYPE 4P / 5P / 8P

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 2004
TYPE
CONTACT TYPE
PLATING SELECTIVE GOLD PLATED
PACKAGE
See Catalog
