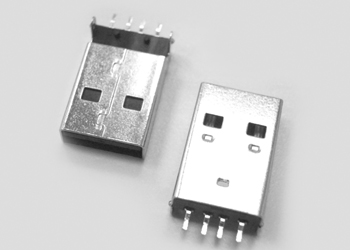

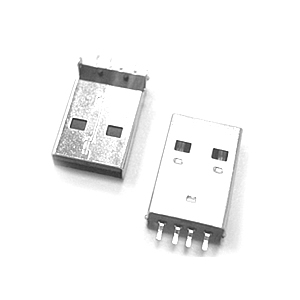

• 2003 SERIES USB A TYPE P.C.B. MALE TYPE

    2003 SERIES USB A TYPE P.C.B. MALE TYPE

    MATERIAL:
    HOUSING : PBT + GF, UL 94V-0 RATED.
    CONTACT : COPPER ALLOY.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     5 AMPS.
    VOLTAGE : 30V AC. (R.M.S.)
    CONTACT RESISTANCE : 30 MILLIOHMS MAXIMUM INITIAL.
    INSULATION RESISTANCE : 1000 MEGOHMS MINIMUM.
    OPERATING TEMPERATURE : -55°C ~ +85°C

    More Specification (PDF)

2003 SERIES USB A TYPE P.C.B. MALE TYPE

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 2003
TYPE MALE
CONTACT TYPE
PLATING
HOUSING MATERIAL
See Catalog
Add to Inquiry List
Review Inquiry List
Back
