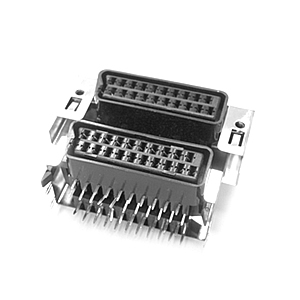

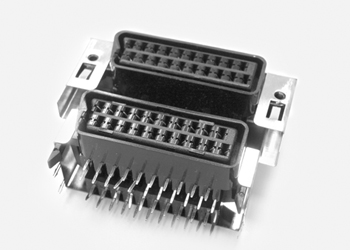

• 7006 SERIES SCART CONNECTOR DUAL PORT WITH SHELL

    7006 SERIES SCART CONNECTOR DUAL PORT WITH SHELL

    MATERIAL:
    HOUSING : ABS UL 94V-0.
    CONTACT : BRASS.

    ELECTRICAL CHARACTERISTICS:
    WITHSTAND VOLTAGE :     AC 500V (50Hz)MIN.
    CURRENT RATING : AC 50 0.2A.
    CONTACT RESISTANCE : 0.02 OHM MAX.
    INSULATION RESISTANCE : 100M OHM MIN.
    OPERATING TEMPERATURE : -25°C TO +70°C.

    More Specification (PDF)

7006 SERIES SCART CONNECTOR DUAL PORT WITH SHELL

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 7006
TYPE DUAL PORT
SHELL W/METAL SHELL
PLATING TIN PLATED
See Catalog
