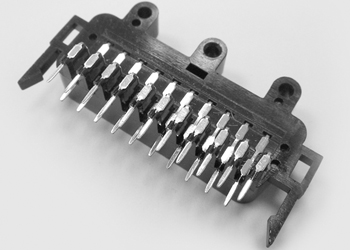

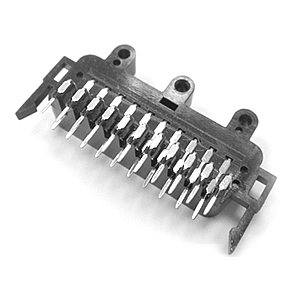

    7002 SERIES SCART CONNECTOR SINGLE PORT WITH TOP SCREW HOLE

    MATERIAL:
    INSULATOR : ABS.
    CONTACT : BRASS.

    ELECTRICAL CHARACTERISTICS:
    WITHSTAND VOLTAGE : AC 500V (50HZ) MIN.
    CURRENT RATING : AC 50 0.2A.
    CONTACT RESISTANCE : 0.02 OHM MAX.
    INSULATION RESISTANCE : 100M OHM MIN.
    OPERATING TEMPERATURE : -40°C TO +55°C

    More Specification (PDF)

7002 SERIES SCART CONNECTOR SINGLE PORT WITH TOP SCREW HOLE

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 7002
TYPE SINGLE PORT
SHELL
PLATING TIN PLATED
SCREW HOLE W/TOP SCREW HOLE
