    1018 SERIES DVI PCB FEMALE STRAIGHT TYPE

    MATERIAL:
    INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
    CONTACT : PHOSPHOR BRONZE OR BRASS.
                      (STANDARD IS BRASS)

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING : 5 AMPS.
    WITHSTANDING VOLTAGE : AC 1250V R.M.S.
    INSULATOR RESISTANCE : 5000 MEGOHMS MIN. AT 500V DC.
    CONTACT RESISTANCE : 15 MILLIOHMS MAX.
    OPERATING TEMPERATURE : -55°C ~ +105°C

    More Specification (PDF)

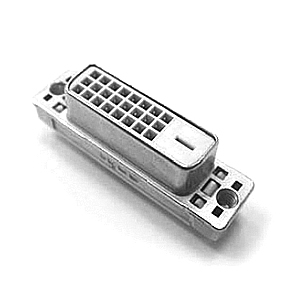

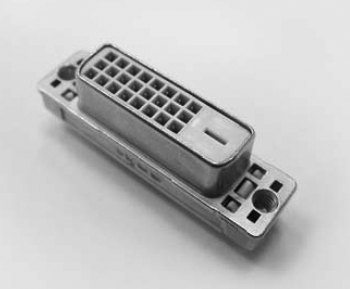

1018 SERIES DVI PCB FEMALE STRAIGHT TYPE

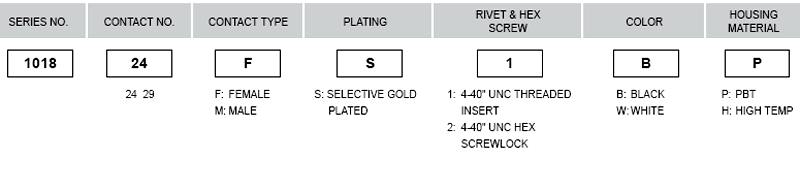

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 1018
CONTACT NO.
CONTACT TYPE
PLATING SELECTIVE GOLD PLATED
RIVET & HEX SCREW
COLOR
HOUSING MATERIAL
See Catalog
