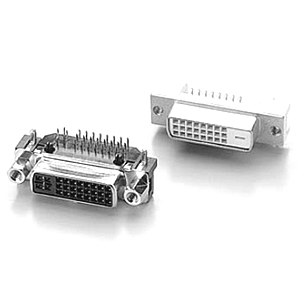

• 1017 SERIES DVI PCB FEMALE R/A DIP TYPE

    1017 SERIES DVI PCB FEMALE R/A DIP TYPE

    MATERIAL:
    INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
    CONTACT : PHOSPHOR BRONZE OR BRASS.
                      (STANDARD IS BRASS)

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     5 AMPS.
    WITHSTANDING VOLTAGE : AC 1250V R.M.S.
    INSULATOR RESISTANCE : 5000 MEGOHMS MIN. AT 500V DC.
    CONTACT RESISTANCE : 15 MILLIOHMS MAX.
    OPERATING TEMPERATURE : -55°C ~ +105°C

    More Specification (PDF)

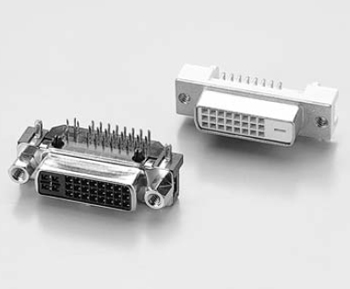

1017 SERIES DVI PCB FEMALE R/A DIP TYPE

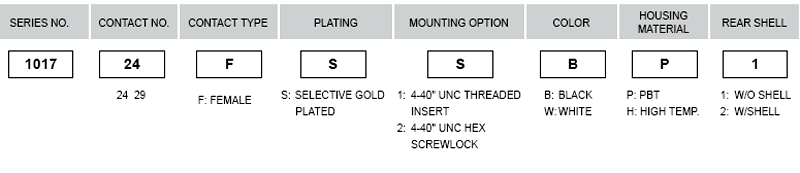

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 1017
CONTACT NO.
CONTACT TYPE FEMALE
PLATING SELECTIVE GOLD PLATED
MOUNTING OPTION
COLOR
HOUSING MATERIAL
REAR SHELL
