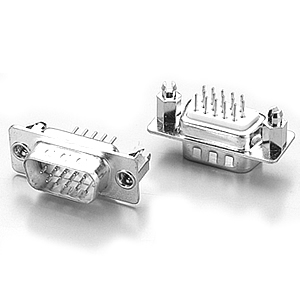

1011 SERIES D-SUB P.C.B. H.D. STRAIGHT DIP TYPE

MATERIAL:
INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
CONTACT : PHOSPHOR BRONZE OR BRASS.
(STANDARD IS BRASS)

ELECTRICAL CHARACTERISTICS:
CURRENT RATING : 5 AMPS.
WITHSTANDING VOLTAGE : AC 1250V R.M.S.
INSULATOR RESISTANCE : 5000 MEGOHMS MIN. AT 500V DC.
CONTACT RESISTANCE : 15 MILLIOHMS MAX.
OPERATING TEMPERATURE : -55°C ~ +105°C

More Specification (PDF)

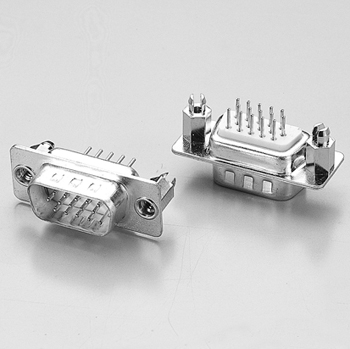

1011 SERIES D-SUB P.C.B. H.D. STRAIGHT DIP TYPE

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

SERIES NO.	1011
CONTACT NO.
CONTACT TYPE
PLATING
ACCESSORIES
COLOR
HOUSING MATERIAL

See Catalog
