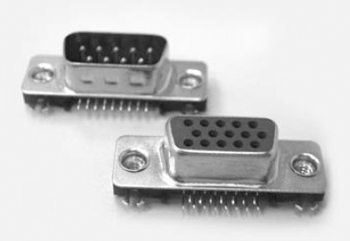

• 1007 SERIES D-SUB R/A DIP SLIM TYPE

    1007 SERIES D-SUB R/A DIP SLIM TYPE

    MATERIAL:
    INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
    CONTACT : PHOSPHOR BRONZE.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     1 AMPS.
    WITHSTANDING VOLTAGE : AC 1000V / 60 SEC. R.M.S.
    INSULATOR RESISTANCE : 5000 MEGOHMS MINIMUM
                                               AT DC 500V.
    CONTACT RESISTANCE : 25 MILLIOHMS MAXIMUM.
    OPERATING TEMPERATURE : -55°C TO +105°C

    More Specification (PDF)

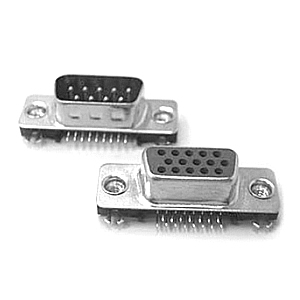

1007 SERIES D-SUB R/A DIP SLIM TYPE

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 1007
CONTACT NO.
CONTACT TYPE
PLATING
RIVET & HEX SCREW
COLOR
SCREW TYPE
HOUSING MATERIAL
