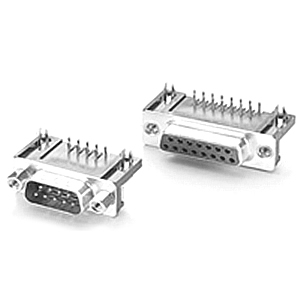

    1006 SERIES D-SUB R/A FOOTPRINT 9.40MM

    MATERIAL:
    INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
    CONTACT : PHOSPHOR BRONZE OR BRASS.
                      (STANDARD IS BRASS)

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     1 AMPS.
    WITHSTANDING VOLTAGE : AC 1000V R.M.S.
    INSULATOR RESISTANCE : 5000 MEGOHMS MIN. AT 500V DC.
    CONTACT RESISTANCE : 20MILLIOHMS MAX.
    OPERATING TEMPERATURE : -55°C ~ +105°C

    More Specification (PDF)

1006 SERIES D-SUB R/A FOOTPRINT 9.40MM

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 1006
CONTACT NO.
CONTACT TYPE
PLATING
RIVET & HEX SCREW
COLOR BLACK
SCREW TYPE
HOUSING MATERIAL
