D-SUB

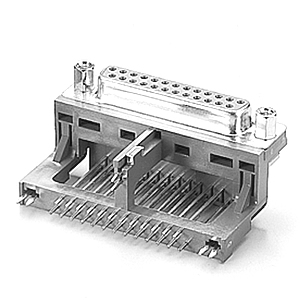

1005 SERIES D-SUB R/A HIGH RAISE 9P/25P

MATERIAL:
INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
CONTACT : PHOSPHOR BRONZE OR BRASS.
(STANDARD IS BRASS)

ELECTRICAL CHARACTERISTICS:
CURRENT RATING : 5 AMPS.
WITHSTANDING VOLTAGE : AC 1250V R.M.S.
INSULATOR RESISTANCE : 5000 MEGOHMS MIN. AT 500V DC.
CONTACT RESISTANCE : 15 MILLIOHMS MAX.
OPERATING TEMPERATURE : -55°C ~ +105°C

More Specification (PDF)

1005 SERIES D-SUB R/A HIGH RAISE 9P/25P

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

SERIES NO.	1005
CONTACT NO.
CONTACT TYPE
PLATING	SELECTIVE GOLD PLATED
RIVET & HEX SCREW
COLOR
SCREW TYPE
HOUSING MATERIAL
