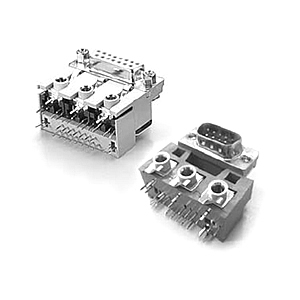

1004 SERIES D-SUB 9M/15F + 3 AUDIO JACK

MATERIAL:
INSULATOR : PBT.
CONTACT : BRASS.

ELECTRICAL CHARACTERISTICS:
CURRENT RATING : 5A.
WITHSTANDING VOLTAGE : AC 1250V R.M.S.
INSULATOR RESISTANCE : 5000 MEGOHMS MIN. AT 500V DC.
CONTACT RESISTANCE : 15 MILLIOHMS MAX.
OPERATING TEMPERATURE : -55°C ~ 105°C

More Specification (PDF)

1004 SERIES D-SUB 9M/15F + 3 AUDIO JACK

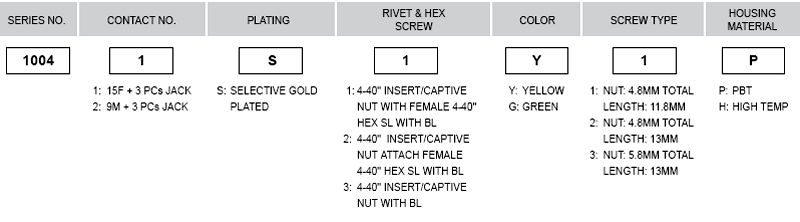

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

SERIES NO.	1004
CONTACT NO.
PLATING	SELECTIVE GOLD PLATED
RIVET & HEX SCREW
COLOR
SCREW TYPE
HOUSING MATERIAL

See Catalog
