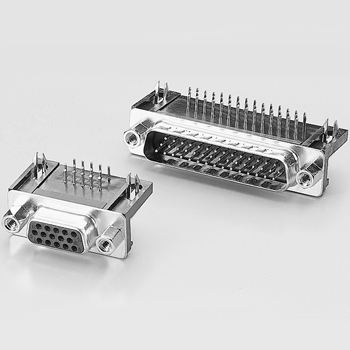

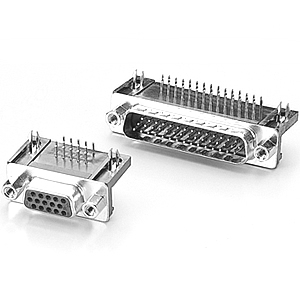

• 1003 SERIES D-SUB H.D. R/A FOOT PRINT 8.89MM

    1003 SERIES D-SUB H.D. R/A FOOT PRINT 8.89MM

    MATERIAL:
    INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
    CONTACT : PHOSPHOR BRONZE OR BRASS.
                      (STANDARD IS BRASS)

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     5 AMPS.
    WITHSTANDING VOLTAGE : AC 1000MIN. (FOR 1 MINUTE)
    INSULATOR RESISTANCE : 1000 MEGOHMS MIN. AT 500V DC.
    CONTACT RESISTANCE : 15 MILLIOHMS MAX.
    OPERATING TEMPERATURE : -55°C ~ +105°C

    More Specification (PDF)

1003 SERIES D-SUB H.D. R/A FOOT PRINT 8.89MM

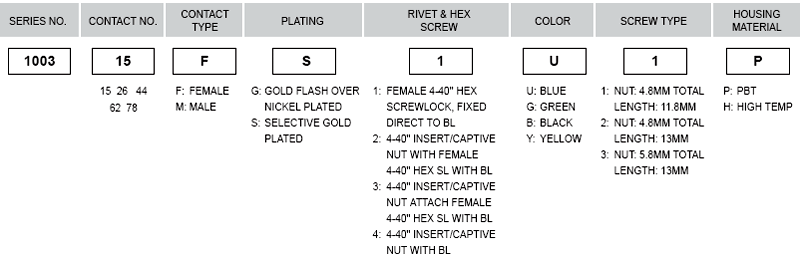

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 1003
CONTACT NO.
CONTACT TYPE
PLATING
RIVET & HEX SCREW
COLOR
SCREW TYPE
HOUSING MATERIAL
See Catalog
