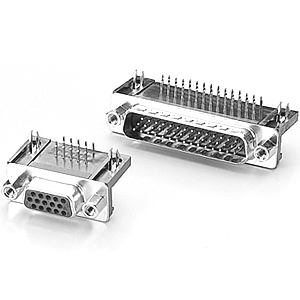

• 1002 SERIES R/A FOOTPRINT 7.20 / 8.08MM

    1002 SERIES R/A FOOTPRINT 7.20 / 8.08MM

    MATERIAL:
    INSULATOR :     PBT + 30% GLASS FIBER (UL94V-0).
    CONTACT : PHOSPHOR BRONZE OR BRASS.
                      (STANDARD IS BRASS)

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     5 AMPS.
    WITHSTANDING VOLTAGE : AC 1250V R.M.S.
    INSULATOR RESISTANCE : 5000 MEGOHMS MIN. AT 500V DC.
    CONTACT RESISTANCE : 15 MILLIOHMS MAX.
    OPERATING TEMPERATURE : -55°C ~ +105°C

    More Specification (PDF)

1002 SERIES R/A FOOTPRINT 7.20 / 8.08MM

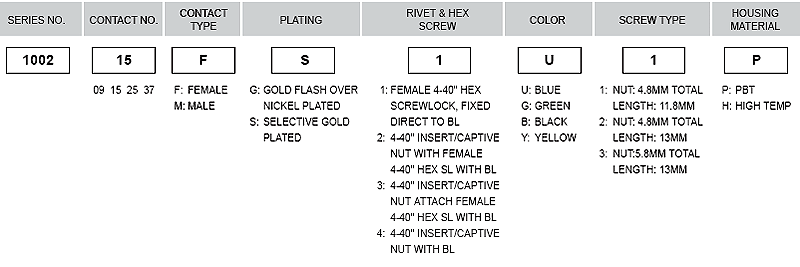

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 1002
CONTACT NO.
CONTACT TYPE
PLATING
RIVET & HEX SCREW
COLOR
SCREW TYPE
HOUSING MATERIAL
