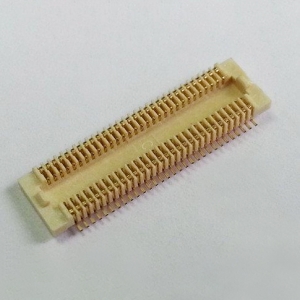

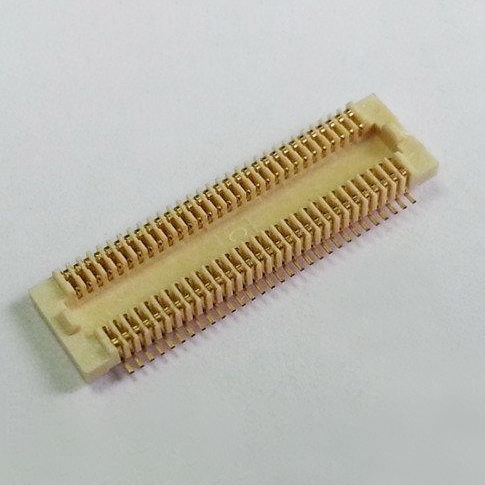

• C2800XX-17 0.5mm B TO B FEMALE, H1.45

    C2800XX-17 0.5mm B TO B FEMALE, H1.45

    MATERIAL:
    INSULATOR: SEE SPEC.
    CONTACT: BRASS

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING: 0.5 AMP.
    WITHSTANDING VOLTAGE : 300V AC / MINUTE.
    INSULATOR RESISTANCE : 1000 MEGOHMS MIN.
    CONTACT RESISTANCE : 30m Ohms MAX.
    OPERATING TEMPERATURE : -40°C ~ +105°C


    More Specification(PDF) BTB Mating Height List
