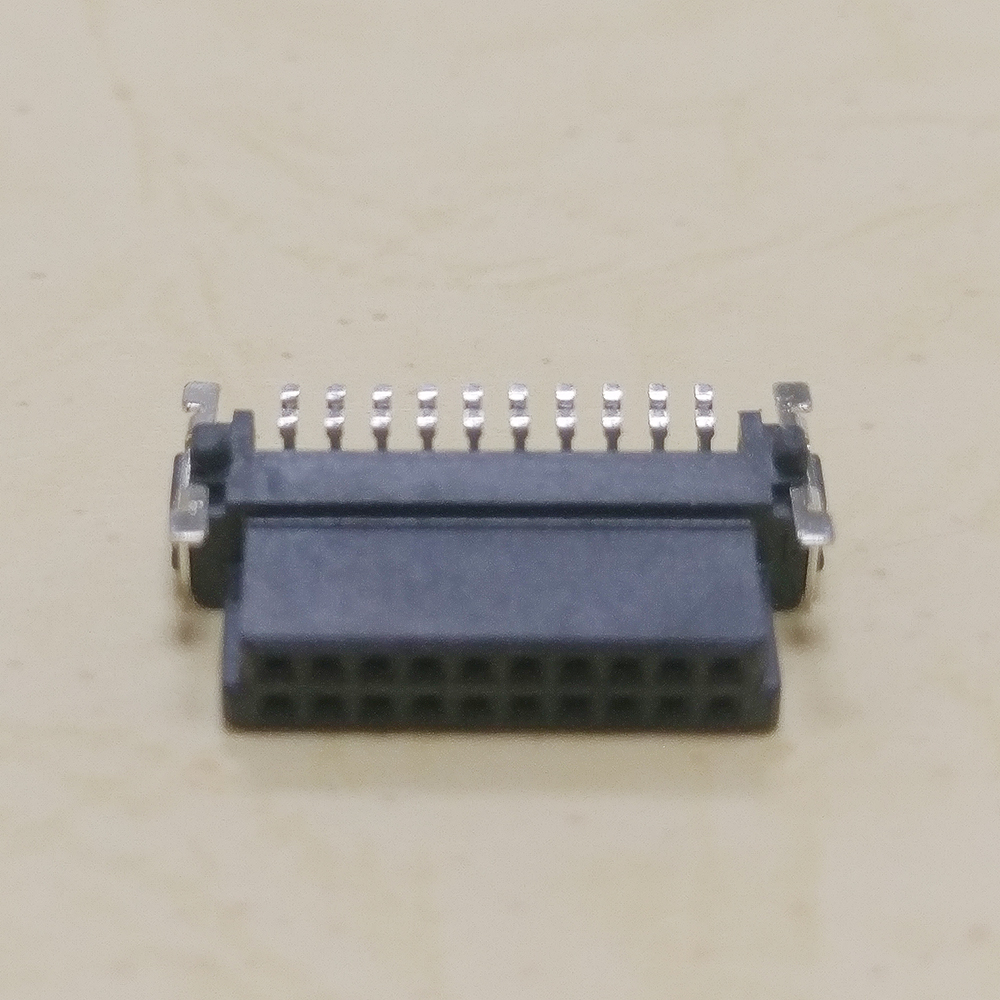

SMC CONNECTOR FEMALE VERTICAL SMT (SMC02)

Specifications:
Insulator Material: High Temp. Thermoplastic, UL94V-0.
Contact Material: Phosphor Bronze.
Board Lock Material: Brass.
Contact Plating: Au on Contact Area. Sn (100 u" Min.) on Soldertail. Nickle (Contact – 80 u" Min. / Soldertail – 50 Min.)
Board Lock Plating: Sn(100u" Min.) over Nickel (40 u” Min.)
Current Resistance: 1.2A Max.
Contact Resistance: 25 Milliohms Max.
Insulator Resistance: 1000 Megohms Min.
Dielectric Withstanding: 500V AC for 1 Minute.
Operating Temperature: -55°C ~ +125°C.
Max. Processing Temp.: 230°C for 30~60 seconds. 260°C for 10 seconds.
