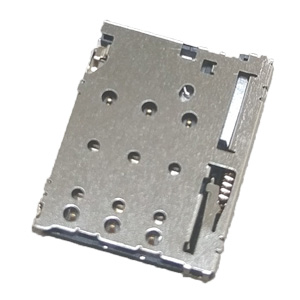

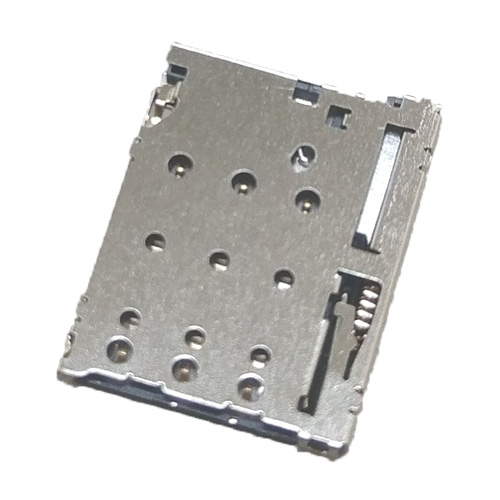

Nano Sim Card Connector Push-Push Type

Nano Sim Card Connector Push-Push Type 6pin H=1.25mm

ELECTRICAL CHARACTERISTICS:
CURRENT RATING: 1.0A
VOLTAGE: 50V DC. MAX.
LOW LEVEL CONTACT RESISTANCE: 60 mohms MAX.
INSULATION RESISTANCE: 1000 MOhms MIN.

MECHANICAL CHARACTERISTICS:
DURABILITY: 5000 CYCLES.
OPERATION TEMPERATURE RANGE: -20°C ~ +85°C

MATERIAL:
HOUSING: THERMOPLASTIC, UL 94V-0
TERMINAL: PHOSPHOR BRONZE
SHELL: STAINLESS STEEL

FINISHED:
TERMINAL: NI PLATED UNDER, 3U" AU MIN PLATED ON CONTACT AREA, AU PLATED ON SOLDER TAIL
SHELL: NI PLATED UNDER, G/F PLATED ON SOLDER TAIL
