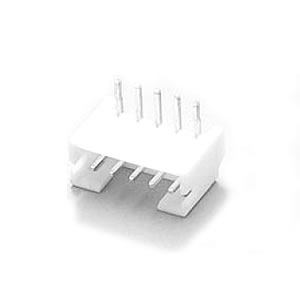

• 3012 SERIES 2.00MM PITCH JST PH WIRE TO BOARD
    3012 SERIES 2.00MM PITCH JST PH WIRE TO BOARD

    3012 SERIES 2.00MM PITCH JST PH WIRE TO BOARD

    MATERIAL:
    INSULATOR : NYLON 66 UL 94V-0.
    CONTACT MATERIAL : PHOSPHOR BRONZE.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING : 2 AMPS.
    WITHSTANDING VOLTAGE : 750V AC MIN.
    INSULATOR RESISTANCE : 1000 MEGOHMS MIN. AT 500V DC.
    CONTACT RESISTANCE : 30 MILLIOHMS MAX.
    OPERATING TEMPERATURE : -25°C ~ +85°C

    More Specification(PDF)
