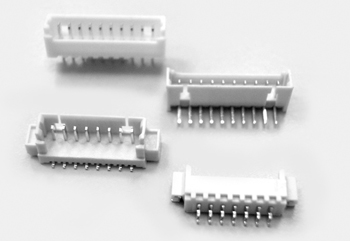

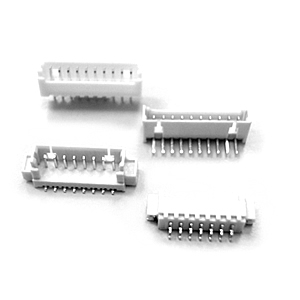

• 3016 SERIES 1.25MM PITCH WIRE TO BOARD
    3016 SERIES 1.25MM PITCH WIRE TO BOARD

    3016 SERIES 1.25MM PITCH WIRE TO BOARD

    MATERIAL:
    INSULATOR : NYLON 66 UL94-V0.
    CONTACT : PHOSPHOR BRONZE OR BRASS.
                      (STANDARD IS BRASS)

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING : 1 AMP.
    WITHSTANDING VOLTAGE : 800V AC MIN.
    CONTACT RESISTANCE : 130 MILLIOHMS MAX.
    INSULATOR RESISTANCE : 1000 MEGOHMS MIN.
    OPERATING TEMPERATURE : -25°C ~ +85°C

    More Specification(PDF)
