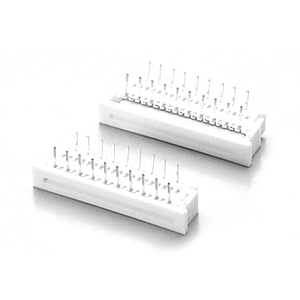

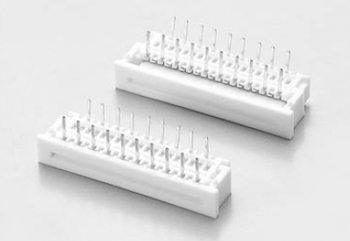

• 6001 SERIES 1.25MM PITCH FPC CONNECTOR

    6001 SERIES 1.25MM PITCH FPC CONNECTOR

    MATERIAL:
    INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
    CONTACT : PHOSPHOR BRONZE OR BRASS.
                       (STANDARD IS BRASS)

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING : 1 AMP.
    INSULATOR RESISTANCE : 5000 MEGOHMS MIN. AT 500V DC.
    CONTACT RESISTANCE : 10 MILLIOHMS MAX.
    OPERATING TEMPERATURE : -55°C ~ +105°C

    More Specification(PDF)

6001 SERIES 1.25MM PITCH FPC CONNECTOR

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 6001
TYPE
CONTACT NO.
PLATING TIN PLATED
CONTACT TYPE
See Catalog
