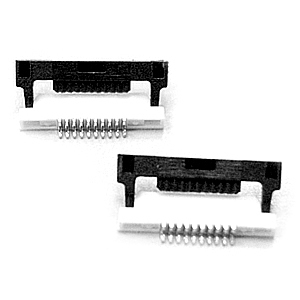

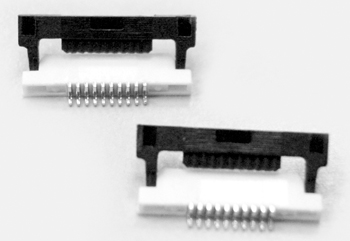

• 6005 SERIES 0.50MM PITCH FPC CONNECTOR PROFILE 0.9MM

    6005 SERIES 0.50MM PITCH FPC CONNECTOR PROFILE 0.9MM

    MATERIAL:
    INSULATOR : NYLON.
    CONTACT : PHOSPHOR BRONZE.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     1 AMP.
    WITHSTANDING VOLTAGE : AC 5000V R.M.S.
    INSULATOR RESISTANCE : 1000 MEGOHMS MIN. AT 500V DC.
    CONTACT RESISTANCE : 15 MILLIOHMS MAXIMUM.
    OPERATING TEMPERATURE : -40°C ~ +105°C

    More Specification(PDF)

6005 SERIES 0.50MM PITCH FPC CONNECTOR PROFILE 0.9MM

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 6005
TYPE ZIF TYPE
CONTACT NO.
PLATING TIN PLATED
CONTACT TYPE
PACKAGE
PROFILE PROFILE=0.9MM
