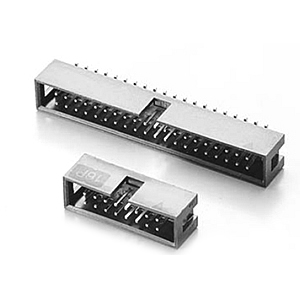

    5008 SERIES 2.54 / 2.00 / 1.27MM PITCH BOX HEADER

    MATERIAL:
    INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
    CONTACT : PHOSPHOR BRONZE OR BRASS.
                       (STANDARD IS BRASS)

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :     1 AMP.
    INSULATOR RESISTANCE : 5000 MEGOHMS MIN. AT 500V DC.
    CONTACT RESISTANCE : 20 MILLIOHMS MAX.
    OPERATING TEMPERATURE : -55°C ~ +105°C

    More Specification(PDF)

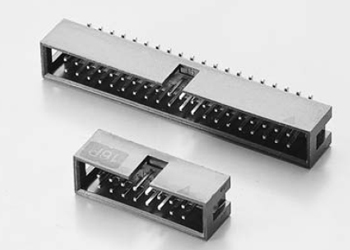

5008 SERIES 2.54 / 2.00 / 1.27MM PITCH BOX HEADER

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 5008
PITCH
CONTACT NO.
CONTACT TYPE
PLATING
HOUSING MATERIAL
COLOR
