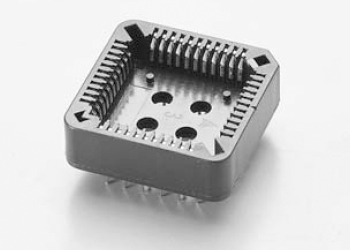

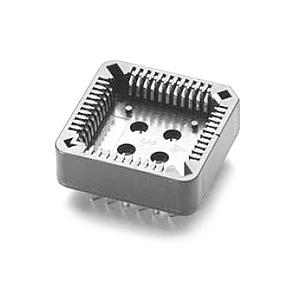

• 4001 SERIES PLCC SOCKET THROUGH HOLE TYPE

    4001 SERIES PLCC SOCKET THROUGH HOLE TYPE

    MATERIAL:
    INSULATOR : PBT + 40% GLASS FIBER (UL94V-0).
    CONTACT : PHOSPHOR BRONZE.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING : 1 AMP.
    WITHSTANDING VOLTAGE : AC 500V FOR 1 MINUTE.
    INSULATOR RESISTANCE : 1000 MEGOHMS MIN. AT DC 500V.
    CONTACT RESISTANCE : 30 MILLIOHMS MAX.
    OPERATING TEMPERATURE : -55°C ~ +105°C

    More Specification (PDF)

4001 SERIES PLCC SOCKET THROUGH HOLE TYPE

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 4001
CONTACT NO.
PLATING
MATERIAL
PACKAGE TUBE
