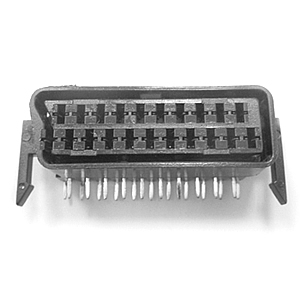

• 7004 SERIES SCART CONNECTOR SINGLE PORT W/O SCREW HOLE

    7004 SERIES SCART CONNECTOR SINGLE PORT W/O SCREW HOLE

    MATERIAL:
    HOUSING : PC UL94V-0.
    CONTACT : BRASS.

    ELECTRICAL CHARACTERISTICS:
    WITHSTAND VOLTACE :     AC 500V (50HZ) MIN.
    CURRENT RATING : AC 50 0.2A.
    CONTACT RESISTANCE : 0.02 OHM MAX.
    INSULATION RESISTANCE : 100M OHM MIN.
    OPERATING TEMPERATURE : 25°C TO +70°C

    More Specification (PDF)

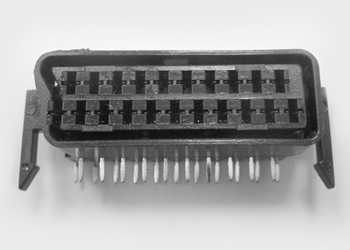

7004 SERIES SCART CONNECTOR SINGLE PORT W/O SCREW HOLE

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 7004
TYPE SINGLE PORT
SHELL
PLATING TIN PLATED
SCREW HOLE W/TOP SCREW HOLE
See Catalog
