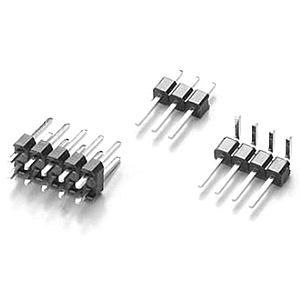

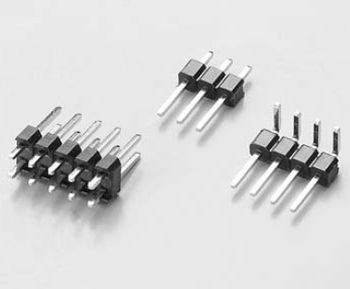

    5001 (DUAL ROW) SERIES 2.54MM PITCH PIN HEADER

    MATERIAL:
    INSULATOR :     PBT + 30% GLASS FIBER,
    UL 94V-0 RATED.
    CONTACT : BRASS.

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING : 1 AMP.
    WITHSTANDING VOLTAGE : AC 750V R.M.S.
    INSULATOR RESISTANCE : 5000 MEGOHMS MIN.
    CONTACT RESISTANCE : 20 MILLIOHMS MAX.
    OPERATING TEMPERATURE : -55°C ~ +105°C

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. 35001D
CONTACT NO.
CONTACT TYPE
PLATING GOLD PLATED
HOUSING MATERIAL
