• MATERIAL:
    INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
    CONTACT : PHOSPHOR BRONZE OR BRASS.
                      (STANDARD IS BRASS)

    ELECTRICAL CHARACTERISTICS:
    CURRENT RATING :
    5 AMPS.
    WITHSTANDING VOLTAGE : AC 1250V R.M.S.
    INSULATOR RESISTANCE : 5000 MEGOHMS MIN. AT 500V DC.
    CONTACT RESISTANCE : 15 MILLIOHMS MAX.
    OPERATING TEMPERATURE : -55°C ~ +105°C

    More Specification (PDF)

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

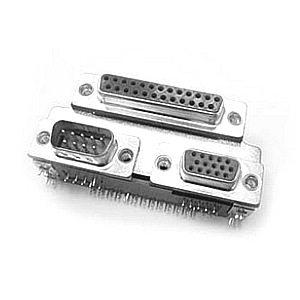

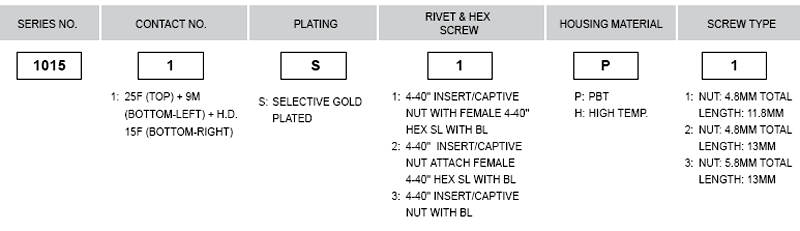

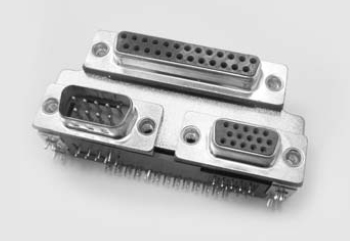

SERIES NO. 1015
CONTACT NO. 25F (TOP) + 9M (BOTTOM-LEFT) + H.D. 15F (BOTTOM-RIGHT)
CONTACT TYPE SELECTIVE GOLD PLATED
RIVET & HEX SCREW
HOUSING MATERIAL
SCREW TYPE
See Catalog
